Broad-scale Fisheries Monitoring Bulletin

DRAG LAKE - FMZ 15 - 2013-2017

Drag Lake facts

Location: DUDLEY
Surface area: 1003 hectares
Maximum depth: 55.5 metres
Average depth: 20.1 metres
Water clarity: 2.8 metres

Monitoring activities

Fish netting - yes
Fish contaminants - yes
Zooplankton - yes
Water chemistry - yes
Bathymetry - no
Water temperature/dissolved oxygen - yes
Aquatic invasive species - yes

Netting summary

Netting period(s): June 26 to July 7 2017
Number of net sets: 33
Number of fish species caught: 10

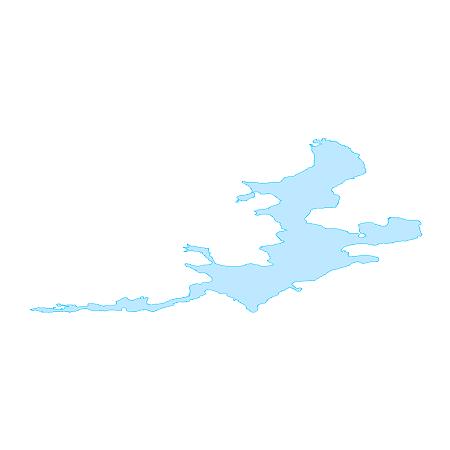

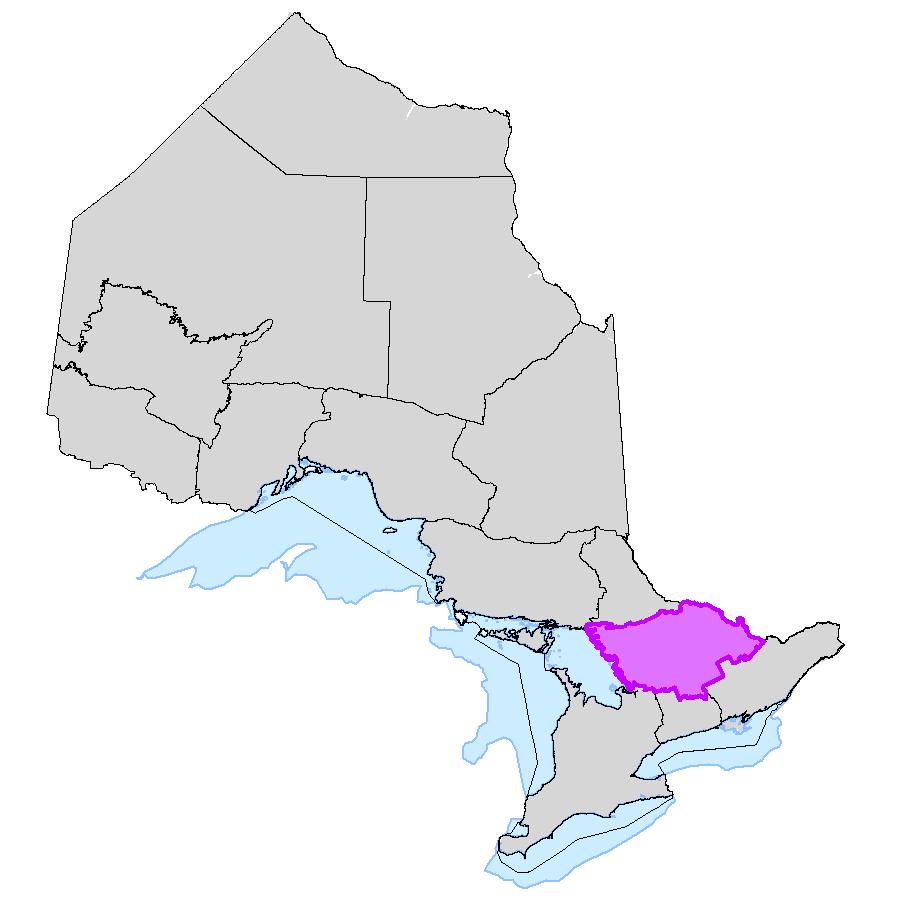

Fisheries management zone highlighted Figure 2. Map of Ontario with FMZ 15 highlighted Lake Image Figure 1. Outline of Drag Lake

About Broad-scale Fisheries Monitoring

The Broad-scale Fisheries Monitoring program collects information from representative lakes in fisheries management zones across the province to help biologists manage our fisheries effectively. This bulletin provides a snapshot of recent monitoring activities and netting results. The sampling approach allows us to measure and evaluate the health of Ontario’s lakes and their fish communities, and track changes through time over broad areas of Ontario. To learn more about the sampling program visit Methods for monitoring fish populations.

Fish netting results

Fish populations were surveyed using large and small mesh nets to provide information on fish species present and their characteristics, such as growth, age, and abundance. The catch data (depicted in the chart below) show that 6 species were surveyed in large mesh nets. Additional fish species observed in small mesh nets were Bluntnose Minnow, Common Shiner, Golden Shiner, and Pumpkinseed.
Fish species Total
Yellow Perch 30 27.3 14.0 20.4
Lake Trout 22 53.3 26.9 38.4
Rock Bass 21 23.6 10.7 15.8
White Sucker 13 61.7 34.2 45.9
cisco 8 42.4 19.0 36.5
Smallmouth Bass 6 45.6 14.2 33.8

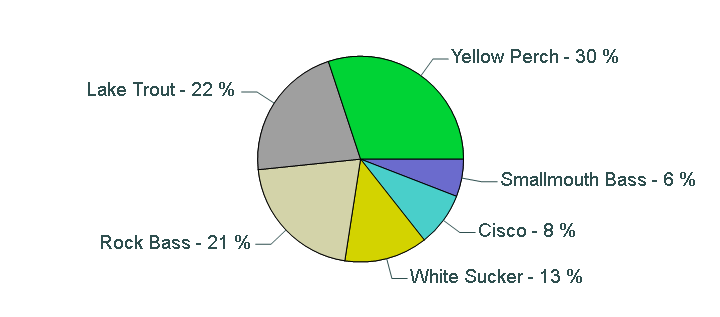

Proportion of fish caught in large mesh nets

Pie chart showing species catch proportions

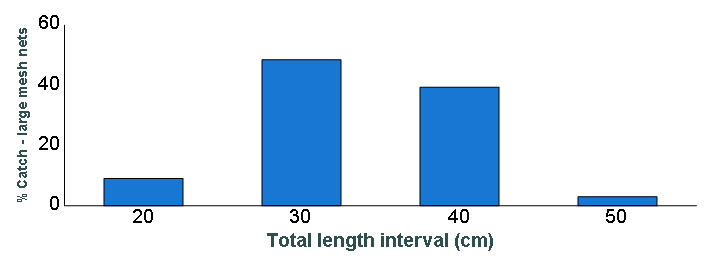

Length distribution of Lake Trout

Length distribution chart of Lake Trout caught in large-mesh nets Catch results are presented in 10-cm length intervals, labelled with the lower limit (e.g., the "20 cm" interval represents fish between 20 cm and 29 cm). The size of Lake Trout ranged from 26 to 53 cm.

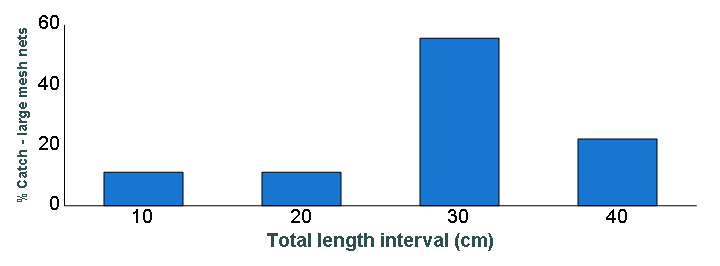

Length distribution of Smallmouth Bass

Length distribution chart of Smallmouth Bass caught in large-mesh nets Catch results are presented in 10-cm length intervals, labelled with the lower limit (e.g., the "20 cm" interval represents fish between 20 cm and 29 cm). The size of Smallmouth Bass ranged from 14 to 45 cm.

Water chemistry and temperature

Water samples were collected in May 2017 and sent to the Ministry of Environment for analysis.

Aquatic invasive species

Field crews searched for aquatic invasive species and spiny water flea were observed during monitoring. Zooplankton samples are being processed to determine if any new invasive species are present. Any species new to Ontario or an invasive species that is a new record for a waterbody is reported to the Invading Species Hotline (

Fish contaminants

Levels of contaminants in fish flesh (e.g., mercury, PCB’s, mirex, organochlorine pesticides, and other organic chemicals) will be reported in: The Guide to Eating Ontario Sport Fish.
